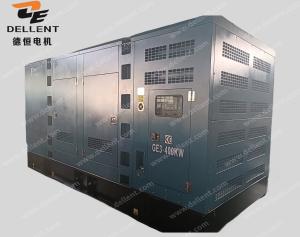

P158LE 50Hz 400kVA Standby Power Doosan Diesel Generator Set
Product Introduce:Dellent Power Doosan Series generator powered by the original Doosan engine, it enjoys high stability, reliability, durability, and long life with a wide range of power output. It is widely used in the area of the port, railway, industrial, and mining.
Our Doosan generators are known for their superior performance, durability, and efficiency, making them the perfect choice for anyone who needs reliable and uninterrupted power. Whether you need a backup power source for your home or office or you need a reliable generator for your industrial or construction site, we have the perfect Doosan generator for you.
As an authorized Doosan generator dealer, we offer a wide range of models to suit any power needs and budget. From compact and portable generators to heavy-duty industrial generators, we have the expertise and resources to help you find the perfect generator for your needs.
Product parameters:
Specification of 400kVA Emergency Standby Generator:
| Model | A-D440 | | Max. Power | kVA | 440 | | kW | 352 | | Rate Power | kVA | 400 | | kW | 320 | | Frequency | Hz | 50 | | Rate Voltage | V | 380/220 | | Rate Current | A | 607.7A | | Fuel Tank Capacity | L | 600 | | Dimension For Open-type Genset | mm | 2850 X 1400 X 1980 | | Weight For Open-type Genset | kg | 3067 | | Dimension For Soundproof Genset | mm | 3700 X 1650 X 2050 | | Weight For Soundproof Generator | kg | 3350 | | Noise Level for Soundproof Generator at 7M | dBA | 78 | | |
Specification of Doosan Diesel Engine P158LE:
| Engine Manufacturer | Doosan Infracore |
| Engine Brand | Doosan |
| Engine Model | P158LE |
| No. of Cylinder | 8 Cyliner V Type |
| Aspiration | Turbocarged & Aftercooed |
| Governor | Electric |
| Engine Max. Output Power | kW | 414 |
| Displacement | L | 14.6 |
| Compression Ratio | 15 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 128 |
| Stroke | mm | 142 |
| Lubrication Oil Capacity | L | 28 |
| Intake Air Flow | M3/Min | 25.3 |
| Fuel Consumption at 100% Load | L/H | 93.0 |
Specification of Control Panel :
Specification of Control Panel for 400kVA Emergency Standby Generator:
| Controller Brand | Deepsea |
| Controller Model | DSE6120 |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 630 |
| Battery Charger | Smartgen Model |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). |
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
If you need DOOSAN generator with other models technical data, kindly contact us for catalogues!
